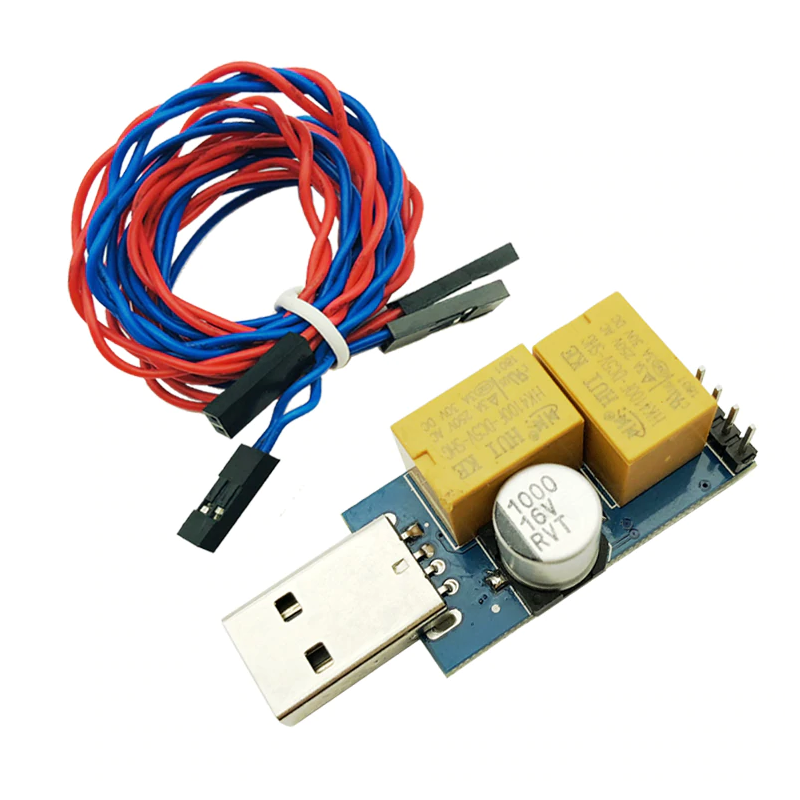

USB Watchdog mining

Features:

100% brand new and high quality.

Applicable to a variety of computer motherboards. motherboards just need with a Type-A USB interface.

Use for windows x86/x64 system. include winxp, win7, win8, win10 etc.

Need to install the driver to compatible with a variety of motherboards.

With desktop software, it can precise monitoring the program as your need, better than no software version.

Reboot timeout time 10-1270 seconds, you can set up it as your need;

Newest monitoring desktop software version: USBWatchDog V2.3.

Function:

Double-Relay Version:

Specified Program Monitoring

Scheduled Restart

Website Monitoring

Video Card Monitoring

Run Log Query

Support Forced Power off Restart

Support Connect electricity Automatic Starting up

How to use?

1. Install the driver

Before install driver, please do not connect USB watchdog with your computer, double-click "Watchdog Driver. exe", click "Install", waiting for the installation is complete.

2. Connect Watchdog to computer USB port.

Connect Watchdog to computer USB port. Do not connect cable with the motherboard reset pin temporarily, because default time-out time is 3 minutes, if drive installment has not finished within 3 minutes, the USB Watchdog may send a reboot signal to system. Wait for the computer to finish the automatic recognization of the watchdog module.

3. Configure USB Watchdog Monitor Software configuration.

A. Open USBWatchDog V2.3.exe and configure as your need.

B. Advise you reboot the USB Watchdog software after you changed configure.

Note:

Some antivirus software may prevent the program running, please click "allow". Watchdog software is running, the control panel LED will flash once 1 time, then connect USB Watchdog Cable with the motherboard Reset pin. It means the computer have crashed When the control panel LED is long time bright.

The upgraded product is all with red and blue lines.

Dual-color wire design can avoid connecting into the wrong interfaces.

The wire is made of industrial grade material, more stable and durable.

Specifications:

Item Type: USB Watchdog

Material: Metal + Plastic

Color: shown as pictures

Size: 5.3×2.0×1.5cm/2.09×0.79×0.59in (Approx.)

Cable length: 50cm/19.69in (Approx.)

Quantity: 1 Set (other accessories demo in the picture is not included)
